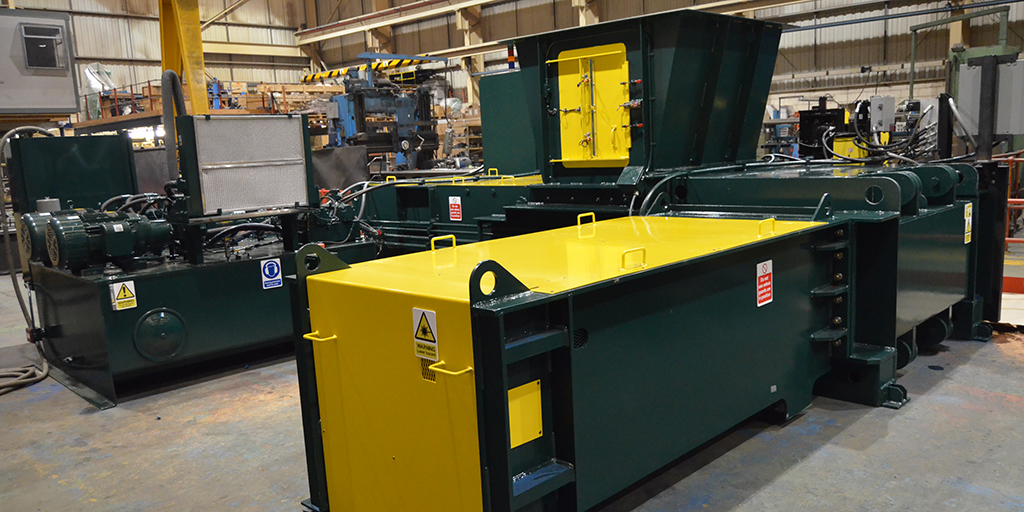

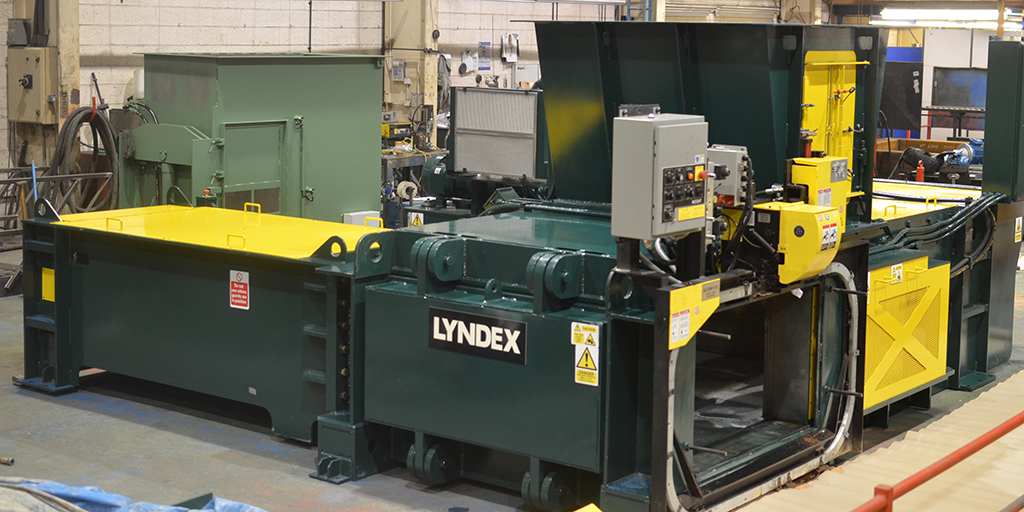

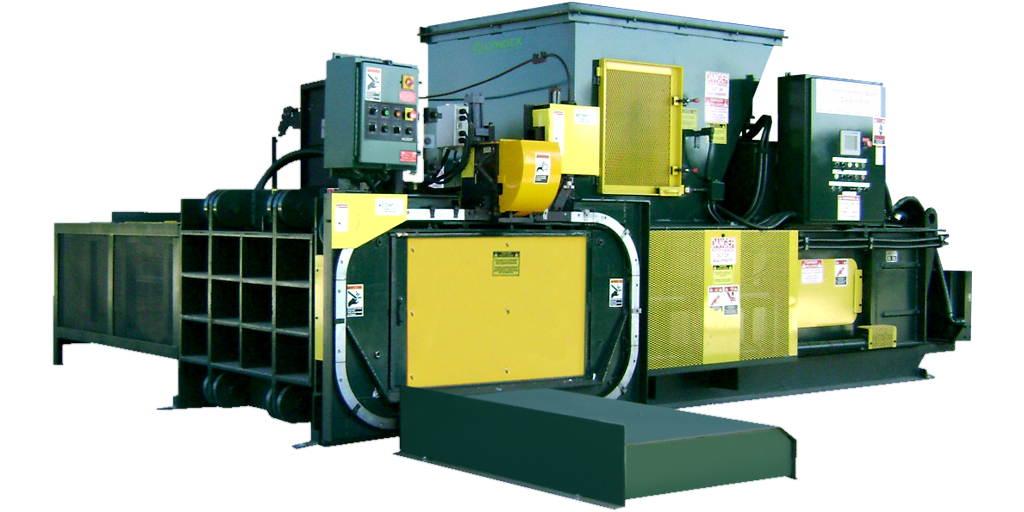

Compact Ram II
Compact versatile Ram II for small/medium throughputs.
The heavy duty Compact Ram II series of balers are available with throughputs from 4-8 Tonnes/hour on OCC.
- Main cylinder sizes available: 70, 85 & 125 Tonne
- Hopper sizes available: 1.65 x 1.47 Mtrs & 1.78 x 1.47 Mtrs
- Bale size: 760 x 1200 x 1524mm
- Hydraulic power units available: 1x22, 1x37, 1x55, 2x37kW
Overview
Brochure
The LT 70-22 Compact Ram II is the smallest machine in the Compact Ram II range of machines.
With a main hydraulic motor of 22kW and a small footprint, the machine is ideal for applications with limited space and power supply.
Specification
| DIMENSIONS | Performance | ||
|---|---|---|---|
| Length x Width x Height | 5.53 x 4.53 x 2.27 Mtrs | Bale Size | 762 x 1219 x 1524 mm |
| Shipping Weight | 13.835 Tonnes | Bale Volume | 1.33m³ |
| Hopper Length x Width | 1.65 x 1.47 Mtrs | Cycle Time | 21 Seconds |
| Charge Box Opening Length x Width | 1.016 x 1.473 Mtrs | Production Capacity | 196m³ |
| Material | In-feed Density | Tonne per hour | Bale Weights (Kg) | Eff %. |
|---|---|---|---|---|
| OCC | 40Kg/m³ | Up to 4.6 | Up to 590 | 55 |
| News | 48Kg/m³ | Up to 5.5 | Up to 725 | 50 |
| Plastic | 16Kg/m³ | Up to 1.8 | Up to 408 | 60 |
Performance rates, bale weights and bale densities are subject to moisture content, material pre-bale densities, feed rates and other variables in baling.
Specifications and nominal dimensions are subject to change without notice.
Overview
Brochure
The LT 85-37 Compact Ram II is the mid-sized machine in the Compact Ram II range of machines.
With a main ram cylinder having a capacity of 85Tonnes pressing force, the machine is able to produce bales of OCC up to 635kg.
Specification
| DIMENSIONS | Performance | ||
|---|---|---|---|
| Length x Width x Height | 5.89 x 4.52 x 2.27 Mrs | Bale Size | 762 x 1219 x 1524 mm |
| Shipping Weight | 15.8 Tonnes | Bale Volume | 1.33m³ |
| Hopper Length x Width | 1.78 x 1.47 Mtrs | Cycle Time | 21 Seconds |
| Charge Box Opening Length x Width | 1.413 x 1.473 Mtrs | Production Capacity | 275m³ |
| Material | In-feed Density | Tonne per hour | Bale Weights (Kg) | Eff %. |
|---|---|---|---|---|
| OCC | 40Kg/m³ | Up to 6.5 | Up to 635 | 55 |
| News | 56Kg/m³ | Up to 9.1 | Up to 771 | 50 |
| Plastic | 16Kg/m³ | Up to 2.5 | Up to 408 | 60 |
Performance rates, bale weights and bale densities are subject to moisture content, material pre-bale densities, feed rates and other variables in baling.
Specifications and nominal dimensions are subject to change without notice.
Overview
Brochure
The LT 125-55 Compact Ram II is the largest machine in the Compact Ram II range of machines.
With a main ram cylinder having a capacity of 125Tonnes pressinf force and a power unit of 1x55kW or 2x37kW, the machine has the capacity to produce high density bales with a throughput of up to 7.5Tonnes/hour.
Specification
| DIMENSIONS | Performance | ||
|---|---|---|---|
| Length x Width x Height | 8.73 x 3.76 x 2.24 Mtrs | Bale Size | 762 x 1143 x 1524 mm |
| Shipping Weight | 24.5 Tonnes | Bale Volume | 1.33m³ |
| Hopper Length x Width | 1.68 x 1.47 Mtrs | Cycle Time | 21 Seconds |
| Charge Box Opening Length x Width | 1.55 x 1.04 Mtrs | Production Capacity | 215m³ |
| Material | In-feed Density | Tonne per hour | Bale Weights (Kg) | Eff %. |
|---|---|---|---|---|
| OCC | 40Kg/m³ | Up to 5.1 | Up to 680 | 55 |
| News | 48Kg/m³ | Up to 6.1 | Up to 816 | 50 |
| Plastic | 16Kg/m³ | Up to 2 | Up to 544 | 60 |
Performance rates, bale weights and bale densities are subject to moisture content, material pre-bale densities, feed rates and other variables in baling.
Specifications and nominal dimensions are subject to change without notice.
