Meggabite

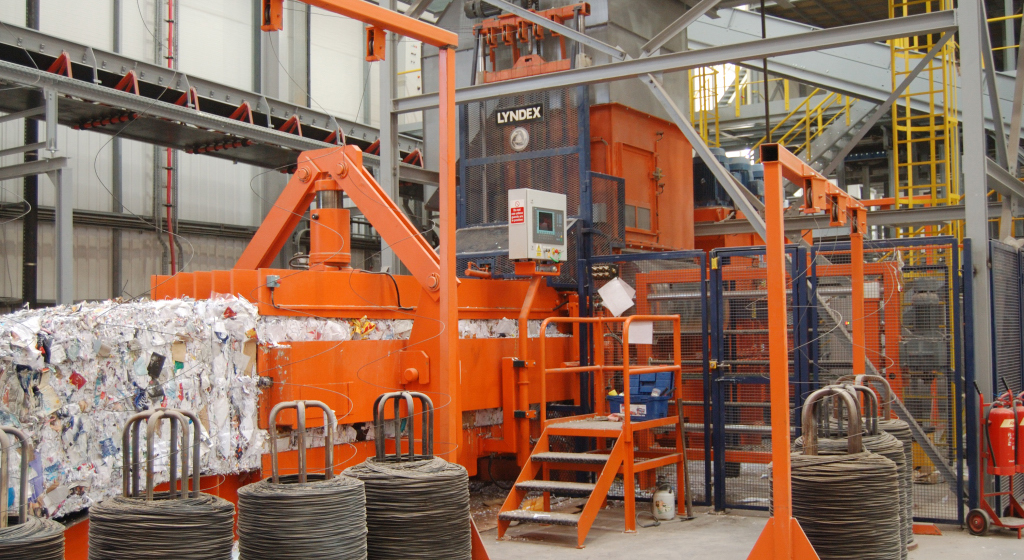

The most versatile productive baler on the market

Lyndex Recycling Systems Limited design and development team looked to develop a multi-purpose baler that could process all types of material without problems. The result was the development of the Meggabite. The Meggabite contains all of the developments from the Bimax shearing press with the addition of two pre-compression flaps.

Pre-Compressions Flaps

The pre-compression flaps are used to increase the infeed density when processing low density materials such as plastics, which result in higher throughputs.

Also when processing bulky high density material the pre-compression flaps are used to push the material below the blade level making processing easier.

With the new improved control system the operator only has to select the type of material grade to be processed. Once selected the system decides if the pre-compression flaps are required resulting in the material being processed in the most efficient and practical way.

  • Main cylinder sizes: 125 - 160Tonne
  • Power units: 2x37 - 3x55kw
  • Hopper size: 2000x1600mm
  • Bale size: 1100x1100mm
Construction
Pre-Press Flaps
Platen
Operator Interface
Tying System
Wire Consumption
Hydraulic System
Channel Control

The all welded construction from thick shot blasted plate guarantees long life, extra vertical ribs in the pressing area to contain all of the pressing forces. The compact design with vertical tying system ensures minimum floor area requirement.

All areas subjected to heavy wear are protected by easily exchangeable bolted wear parts, thus extending the life of the wear parts and reducing operating costs.

Key assemblies are machined where precision is required and the structure is assembled in jigs to ensure tolerances are maintained.

The pre-compression flaps are used to increase the infeed density when processing low density materials such as plastics, which result in higher throughputs.

Also when processing bulky high density material the pre-compression flaps are used to push the material below the blade level making processing easier.

With the new improved control system the operator only has to select the type of material grade to be processed. Once selected the system decides if the pre-compression flaps are required, resulting in the material being processed in the most efficient and practical way.

Heavy duty platen multi plate configuration with fully supported triangular blades Incorporating full length hold down ledges, Concentrating the shearing force, enhancing the ability of the machine to shear even the most difficult materials. Maximum force is concentrated on the leading edge of the blades for better penetration and smooth shearing. This also allows more energy efficient use of the hydraulic force.

The operator interface main screen has a graphical view of the machine showing all the important machine parameters such as pressure, bale length, temperature and material selection. The interface has been specifically designed to be user friendly with operators becoming familiar with the screens within minutes. Operators only have to select the material grade to be processed. The embedded recipe system chooses the correct machine parameters to produce the best bale possible.

All alarm functions are date and time-stamped and logged.

A data log system can also be incorporated as an option.

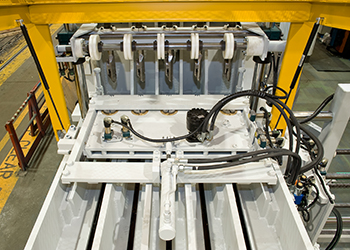

The most reliable and fastest tying unit fitted to any channel baling press.

The “Bigromat” twister is equipped with a hydraulic motor which simply drives a set of gears which in turn drive the twister gears. Twisting discs can be removed by simply lifting out. The number of twists can simply be increased or decreased from the operator interface.

The “Bigromat” ties the wire without leaving “pigtails” which one will have with any finger type tying unit.

The wire saved on a typical 1100 x 1100mm bale can be as much as 2.5-3 metres (10%), taken over a 12 month period there would be a significant cost saving.

The hydraulic system incorporates the most up to date technology and reliability. At the heart of the system Lyndex utilises a two or three-stage pump arrangement, one or two-high volume vane pump and a variable displacement high pressure pump.

Filtration is by means of a pressure filter in line with the high volume pump. Oil is filtered down to 25 microns and the whole volume of oil is filtered 20 times each hour. Oil cooling is controlled automatically. Pressure and temperature transducers monitor hydraulic parameters.

To optimise bale density on all materials a proportional channel control system is incorporated. All the operators need to do is select the material to be processed. The intelligent software within the control system determines how much pressure is required in the channel valve, to give maximum compaction of material in each stroke.

Horizontal Tying
Distributor
Plastic Tying
Refuse Platen
Lined Pressbox
Data Log
Platforms
Machine Beams

When baling plastic or bulky material, a 2 or 3 wire horizontal tying system can be added to hold the baled material together in uniform bales, reducing expansion.

The distributor is used to disperse bundled materials and magazines in the hopper to produce a more uniform bale. The distributor is manually or hydraulically inserted dependant upon machine size.

When processing RDF (Refuse-Derived Fuel) material, the Meggabite can be equiped with the Lyndex "Hookmat" plastic tying system, which uses plastic monofilament baling wire. The system can be designed to work with either plastic or steel wire, making the machine more flexible.

When processing MSW (Mixed Solid Waste), the Meggabite can be equipped with a refuse platen which consists of a retractable tying comb and locking bolts which reduces material blockages in the platen slots.

When processing very abrassive material, the side walls of the press and the press channel floor, lid and sides can be fitted with replaceable Hardox wear plates.

The Lyndex data log system allows for remote logging of all bales produced, broken down into material types. All material alarms are also data & time-stamped, and logged.

Working with Lyndex Design department, additional maintenance platforms can be incorporated as part of the machine supply.

The machine can be fitted with additional beams to raise the machine above the floor to eliminate the need for a needle pit and give more clearance under the machine for cleaning.

DIMENSIONS
Length x Width x Height 12 x 2.5 x 5.1 mtr
Weight 41 Tonnes
Hopper Length x Width 2 x 1.6 mtr
Bale Height x Width 1.1 x 1.1 mtr
Minimum Hopper Height 2.2 mtr
Drive 2x37, 2x55, 2x75, 3x55 Kw
Pressing Force 125, 145 Tonnes
Specific Pressing Force 10.7, 12.3, 16.74 Kg/cm²
Pre-Compression Flap Force 45, 60 Tonnes
Tying Wires Vertical 5
Tying Wires Horizontal (optional) 3
Capacity
Infeed Density 10-20 kg/m³ 6 - 17 Tonnes/hour
Infeed Density 30-40 kg/m³ 20 - 35 Tonnes/hour
Infeed Density 50-60 kg/m³ 40 - 53 Tonnes/hour
Infeed Density 80-100 kg/m³ 63 - 70 Tonnes/hour

All details subject to change without notification. Figures based on 100% efficiency.
